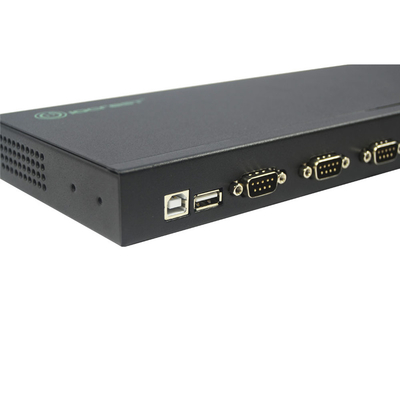

FTDI USB 2.0 To 8 Chip DB9 Serial Converter Multi Ports RS232 Serial Adapter IO-U24232C-8S

Features

Standards: conforming to USBV1.0, 1.1 and 2.0 and EIA RS-232

USB 2.0 High Speed (480 Mbits/Second) and Full Speed (12Mbits/Second)

USB signals: VCC, DATA+, DATA-, GND

RS-232 signals: DCD RXD TXD DTR GND DSR RTS CTS RI

Direction control: adoption of automatic data stream control for automatic recognition and control of data transmission direction

Supports serial transmission rate up to230400bps

UART Interface supports 7/8 bit data, 1/2 stop bits, and Odd/Even/Mark/Space/No Parity

Transmission distance: 5 meters for RS-232 and less than 5 meters for USB

Interface protection: 600 lightning strike protection, ±15KV ESD protection and surging

Interface forms: B interface female connector and DB9 male connector for USB.

LED indicators for adapter data activity

Supports automatic handshake mode

Working environment: -40 to 85 , relative humidity 5% to 95%

Supports bus powered, self powered and high power bus powered USB configurations

Optional DC jack(DC 12V) or terminal block power connections (9-36 DC )
